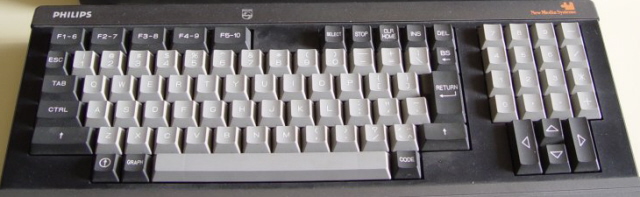

European MSX Keyboard


http://www.museo-computer.it/Computer

The European MSX keyboard is used in the generic MSX and MSX2 machines without any other indication. It's also used in the generic MSX2 Only PSG, MSX2+ European and MSXturboR European machines.

Here's the list of the concerned specific machines (* = this machine is without numeric keypad) :

- MSX machines : Daewoo DPC-200E (*) / Frael Bruc 100-1 / Goldstar FC-200 (*) / Philips NMS-801 (*) / Philips VG-8000 (*) / Philips VG-8010 (*) / Philips VG-8020-00 (*) / Philips VG-8020-20 (*) / Spectravideo SVI-728 / Spectravideo SVI-738 (*) / Spectravideo SVI-738 Henrik Gilvad (*) / Toshiba HX-10 (*) / Toshiba HX-10S (*) / Toshiba HX-20 (*)/ Yamaha CX5M-1 (*) / Yamaha CX5M-2 (*) / Yamaha CX5MII (*) / Yamaha CX5M-128 (*) / Yamaha YIS-303 (*) / Yamaha YIS-503 (*) / Yamaha YIS-503II (*) / Yamaha YIS-503M (*) / Yashica YC-64 (*)

- MSX2 machines :
Philips NMS-8220 (*) / Philips NMS-8220 (a) (*) / Philips NMS-8245 (*) / Philips NMS-8250 / Philips NMS-8255 / Philips NMS-8280 / Philips VG-8235 (*) / Philips VG-8240 (*) / Spectravideo SVI-738-2 CUC (*) / Spectravideo SVI-738-2 JP Grobler (*) / Toshiba HX-23 (*) / Toshiba HX-23F (*) / Yamaha CX7M (*) / Yamaha CX7M-128 (*)

The MSX Philips VG-8000 and VG-8010 and VG-8010F machines come with a strange keyboard matrix that is patched for the emulator. Besides, the GRAPH and CODE keys work as toggles, just like the KANA key on Japanese machines.

The Frael Bruc 100-1 machine is a computer without the MSX logo, but with a MCL extended basic and a PC keyboard ! It was used in some Italian schools. The machine is compatible with MSX1 with some little differences or additionnal features : blinking cursor, step forward word by word, cut a text line, no display of the functions keys, different default color for the Basic screen, etc. Check http://fraelbruc100.msxit.org/ for more infos.

The following European machines use a little different keyboard matrix, with the pound sterling symbol in stead of ` and the ` character on third row with Code after the ij character (* = this machine is without numeric keypad) :

- MSX machines : Canon V-10 (*) / Canon V-20 (*) / JVC HC-7GB (*) / Mitsubishi ML-F80 (*) / Mitsubishi ML-FX1 / Pioneer PX-7 (*) / Sanyo MPC-100 (*) / Sanyo PHC-28S (*) / Sanyo Wavy MPC-10 (*) / Sony HB-10P (*) / Sony HB-55P (*) / Sony HB-75P (*) / Sony HB-201P (*) / Sony HB-501P (*) / Yamaha YIS-503F (*)

- MSX2 machines :
Philips VG-8230 (*) / Sony HB-F9P / Sony HB-F500P / Sony HB-F700P / Sony HB-G900AP / Sony HB-G900P /

The MSX keyboard is very similar to a standard PC keyboard. The typewrite keys are almost the same as well as the numeric keypad. The Caps key toggles bigger sized alphabet characters.

The MSX keyboard has five physical function keys. To access function key 6 to 10, you need to hold down the SHIFT key and press one of the keys F1 to F5.

As some MSX keys don't exist on a PC keyboard, the emulator makes also some adjustements to support the complete MSX keyboard :
- the PC key before the "1" key is used for emulate the extrem right MSX key on the third row
- the extrem right PC key on the third row is used to emulate the extrem right MSX key on the first row

Specific MSX keys are mapped to the following PC keyboard keys :

MSX key   PC key

Select   End   Used in some games and applications (it's also the case of the Esc key).
Stop   Page Up   Allows to pause and resume a task in the MSX-BASIC or MSX-DOS environment. When you press this key while holding the Ctrl key, the current task will be abruptly broken.
Clr Home   Home   Allows to move the cursor to the top left of the screen. If you press Shift + Clr Home, the screen will be cleared.
Graph   Left Alt   Gives graphical characters by pressing it with a normal character. Can be combined with Shift.
Code   Right Alt   Gives special or accented characters by pressing it with a normal character. Can be combined with Shift.
Comma on numpad   Page Down
Accent Mark   Right Ctrl   Allows to put an accent mark on a vowel. You need to press it, alone or with control key(s), then to press on the vowel key
- Accent Mark then the vowel key : accent grave (`). Example : .
- Shift + Accent Mark
then the vowel key : accent acute (). Example : .
- Code
+ Accent Mark then the vowel key : accent circumflex (^). Example : .
- Shift + Code + Accent Mark
then the vowel key : umlaut / accent diresis (). Example :


The tables underneath show you how to generate special characters with key-combinations of your PC keyboard :

Normal mode   Normal mode + Shift

Normal mode (variant)

Code   Code + Shift

Code (variant)   Code + Shift (variant)

Graph   Graph + Shift


The extrem right character of the fourth row is the Accent Mark.
